Diy Pulley Tensioner or Pulley Idler for Rc Counter Steer mod

Diy Pulley Tensioner

Here's an update version of my Diy Pulley Tensioner or Pulley Idler

I will be using the HB Cyclone-S pulley for this project
you can get them here


Cut the side knob and sand it down even



You need a 1/4 drill bit to bore for an opening
for the flanged bearing about 2mm deep



Flanged bearing size 3x6x2.5mm
you can get them here



Test the flanged bearing into the pulley
then repeat process to the other side



Here's the 3racing belt tension available here



Final assembly

Project Diy Rc Body Roof Rack

Here's my simple version of Diy Rc Body Roof Rack

I will be recycling some of my rc stuff for this project

Things you need: lexan plastic tree parts screws double sided tape screw driver xacto knife scissors
black marker

Join us at RcDriftRevolution.com

Preview of my Diy Rc Body Roof Rack




You need a piece lexan from your rc body
cut outs to make the legs



Tamiya plastic tree parts for the bar



You need to trace 4 of this roof rack legs



Mark the rc body where you want the roof rack legs
then cut a small line for the legs, you can use a dremel
to make cuttings easier



Insert the legs to test the height you want



Bend all the lexan into an L shape when you get the
right height and paint them with a black marker
also drill a hole for the mounting screw



Insert all the legs into the body and secure
them with double sided tape



For the bar you need to cut it from the plastic tree
make 2 of this



then screw them to the legs




I hope you enjoy this simple Diy rc roof rack project



Join us at RcDriftRevolution.com

When your done share us your version at RCDR (forum)

DIY Rc Pop Up Headlights

Here's my version of DIY Pop Up Headlights or Flip Headlights for more info go to RcDriftrevolution.com forum under DIY section.

Rc Flip Head Lights DIY step by step

Finally, I got myself motivated to make this DIY Flip Lights. I been ask several times to make another DIY flip lights this time I took some pictures

I will be using a recycled Onevia body, I got from my friend.

The DIY is really simple and it can be applied to any other bodies.


Part: One Assembly rod

Cut off an opening for the new buckets make sure its straight.

* for Trueno AE86 body follow the outline of the lid and save the Lids*






Insert the push rod into the antenna straw then bend the rod into V shape

Place the assembly rod inside the rc body for measurements

Once you have the right measurement bend the other end of the rod into V shape



Place the assembly rod inside the body and either use tape or hot glue to hold in place temporarily





Now glue hot glue or tape the Lid on the V shape rod



Check if everything is aligned



Do a manual flip test



Now you can permanently epoxy the antenna straw and the Lids






Part: Two Light buckets

Here's my version for light buckets, you need to make a triangle and for the width measure the opening in the body

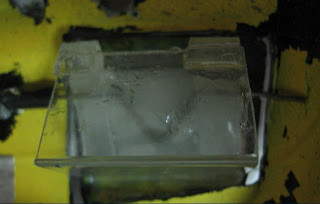

Glue the bucket with the lid temporarily



Check for alignment and glue pemanently



Cut little cardboard triangles for the side of the buckets
I painted them with black markers and glue them on the sides of the buckets



Outline the front lens with a black marker



Important !
Add a piece of straw on the end of the assembly rod to prevent from moving





Part: Three Servo arm

You need a servo arm for the light bucket



Glue the arm on the side of the light bucket





You need a servo push rod for final piece bend the ends

Measure the length and where you want place the servo



Install one end of the push rod to the light bucket



Do the same on servo



Placed the servo on an angle where the wheels are free to move



Run the servo wire on the side where the receiver for easy access



Your Done!



* adding lights is another story *

Visit our Forum thread and share your project @ RcDriftRevolution.com

D-Style KE70 rc body

Here's my latest project KE70 rc body.
I been wanting to do this project but, the sources are limited.
Finally, I made it happen and I'm happy with the result..

You can follow my thread D-Style KE70
